[android] android 데이터 관리 +CustomerManagement 최종구현















안드로이드 최종구현







https://hwantech.tistory.com/104ㅇ

[android] android 커스텀 리스트뷰 (custom listView)





이용해서 데이터 관리까지하는 리스트뷰~~~~









CustomerManagement 로 구현해보았당









---------------------------------<중ㅇ!!!>---------------------------------------







메인화면에서 두 xml 화면으로 나눠서 들어가기 때문에

manifests에 이 소스를 적용시켜야한당

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="aca.hankook.CustomerManagement">

<application
    android:allowBackup="true"
    android:icon="@mipmap/ic_launcher"
    android:label="@string/app_name"
    android:roundIcon="@mipmap/ic_launcher_round"
    android:supportsRtl="true"
    android:theme="@style/AppTheme">
    <activity android:name=".JasehiActivity"></activity>
    <activity android:name=".CustomerlistActivity" />
    <activity android:name=".RegisterActivity" />
    <activity android:name=".MainActivity">
        <intent-filter>
            <action android:name="android.intent.action.MAIN" />

            <category android:name="android.intent.category.LAUNCHER" />
        </intent-filter>
    </activity>
</application>

</manifest>





-----------------------------------------------------------------------------------------------------





구현시작!!!

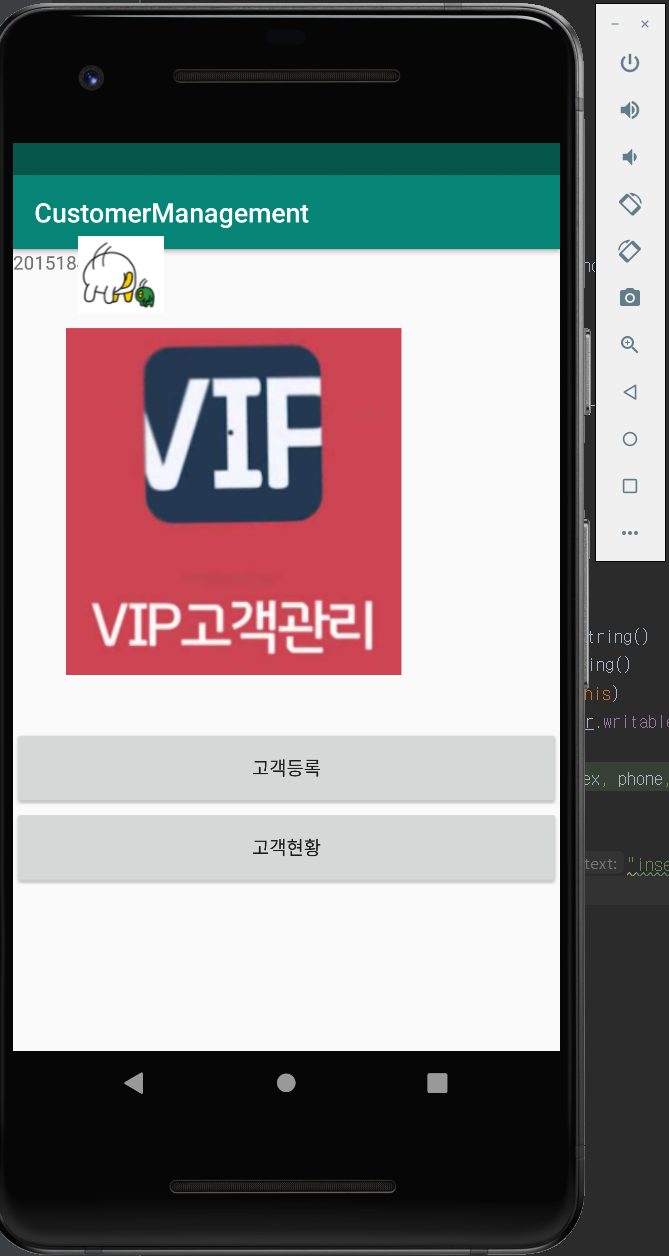

activity_main.xml



<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">


    <ImageView
        android:padding="40dp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/main" />

    <Button
        android:padding="20dp"
        android:id="@+id/button1"
        android:text="고객등록"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />

    <Button
        android:padding="20dp"
        android:id="@+id/button2"
        android:text="고객현황"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />

</LinearLayout>

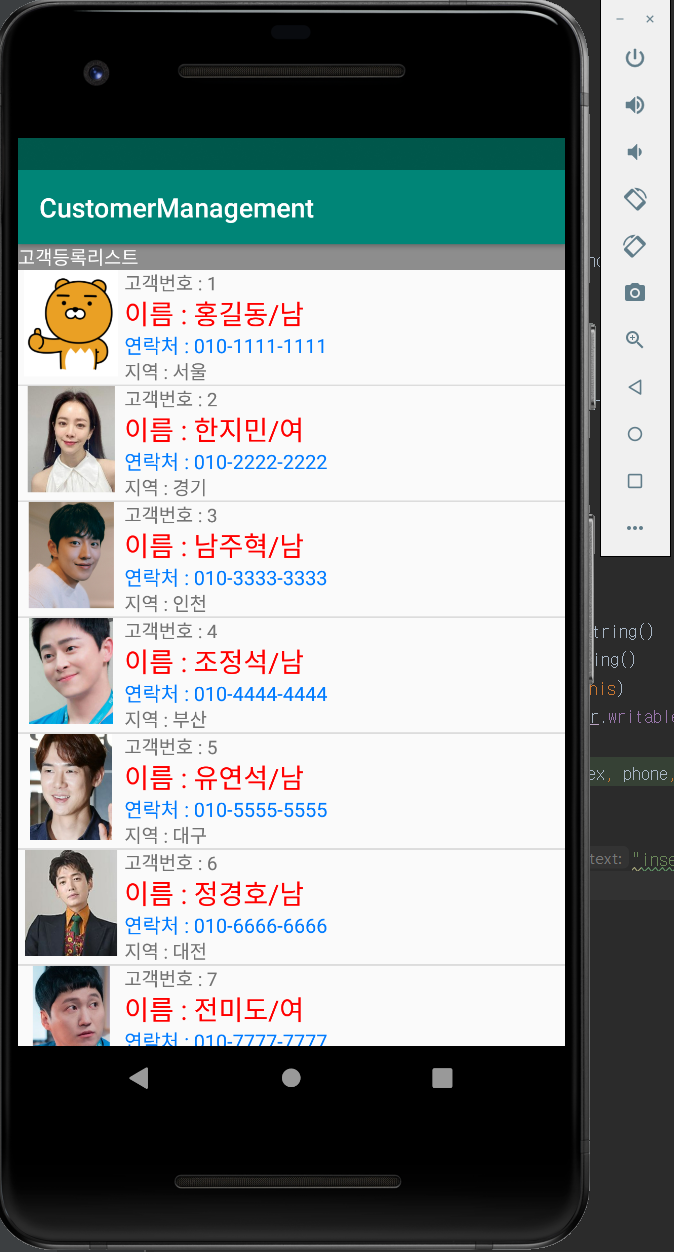

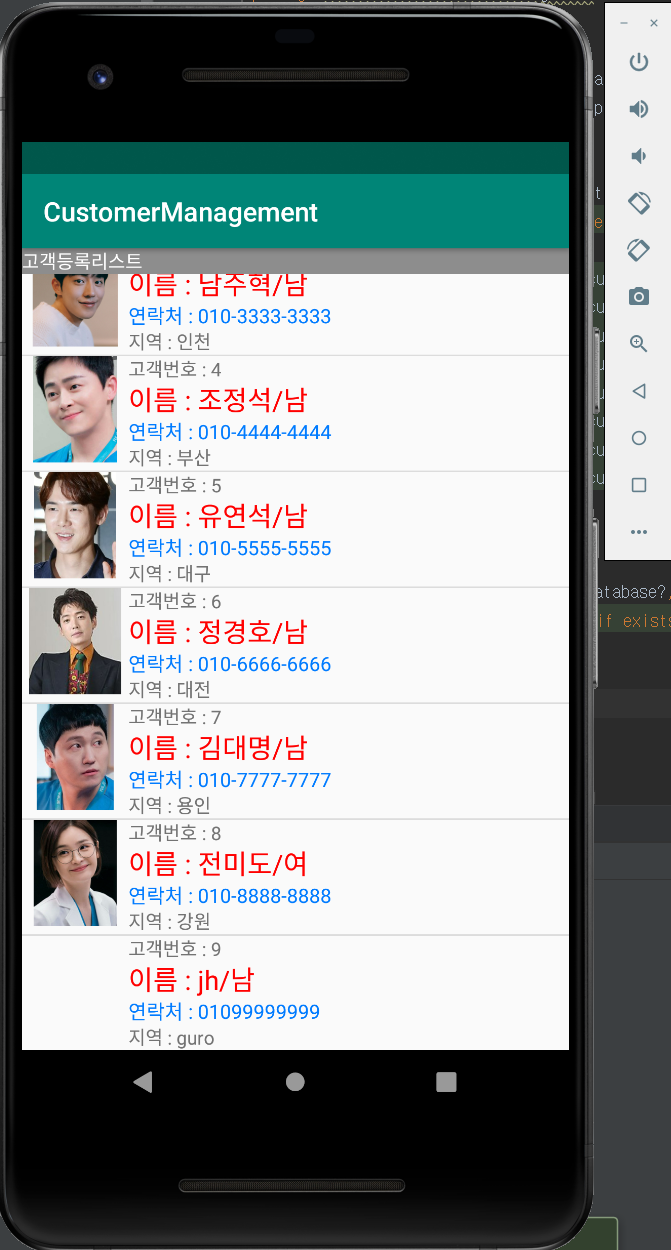

customerlist.xml



<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".CustomerlistActivity">

    <TextView
        android:background="#8D8D8D"
        android:text="고객등록리스트"
        android:textColor="#ffffff"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />

    <ListView
        android:id="@+id/listView1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />


</LinearLayout>

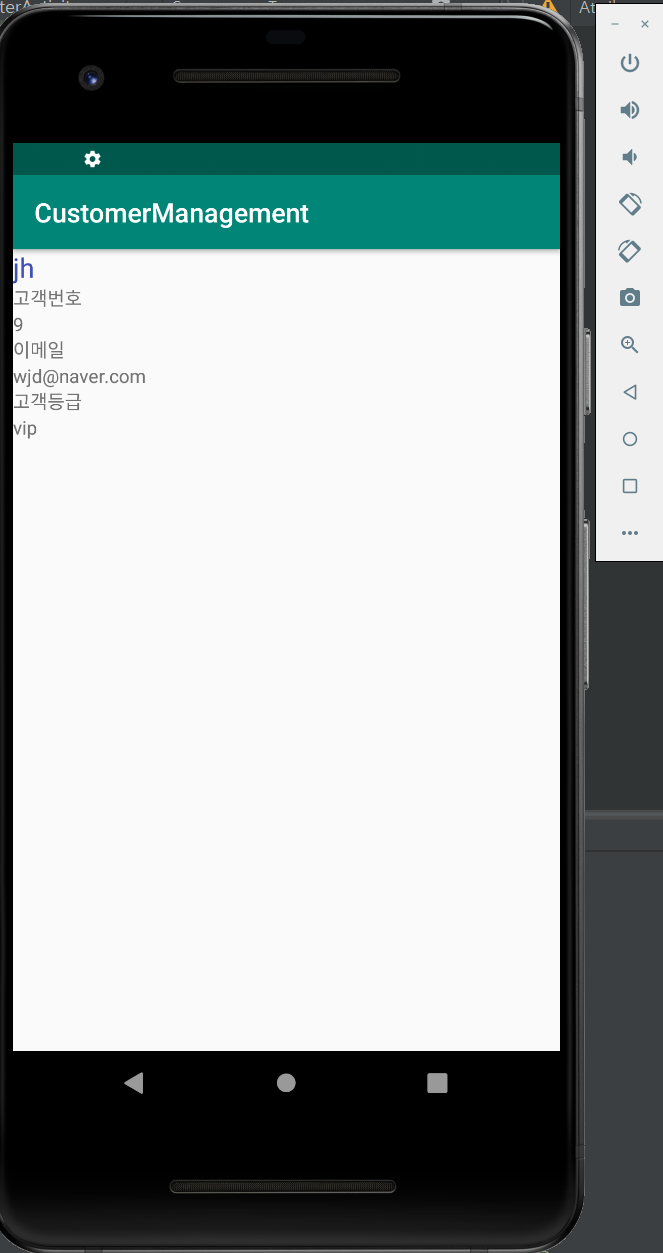

jasehi.xml



<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".JasehiActivity">

    <TextView
        android:id="@+id/jName"
        android:text="이름"
        android:textSize="20sp"
        android:textColor="#3F51B5"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"/>


    <TextView
        android:id="@+id/jId"
        android:text="고객번호"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />


    <TextView
        android:text="이메일"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />


    <TextView
        android:text="고객등급"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />


</LinearLayout>

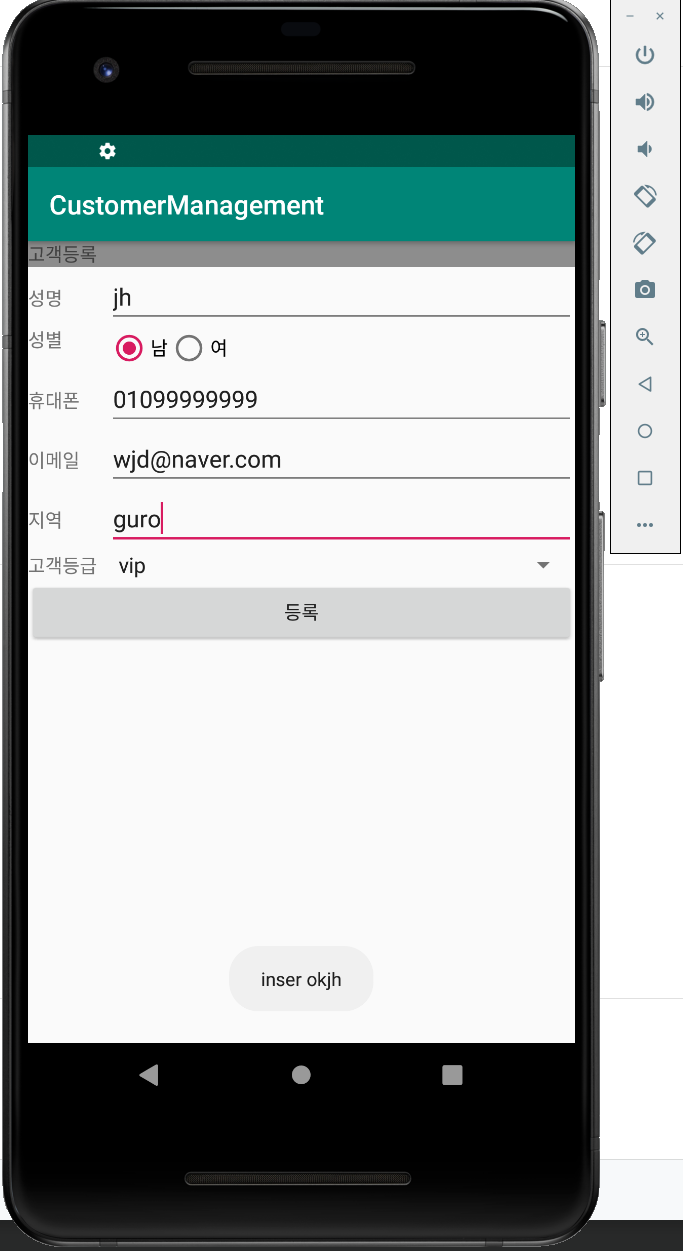

register.xml



<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical" android:layout_width="match_parent"
    android:layout_height="match_parent">

    <TextView
        android:background="#8D8D8D"
        android:text="고객등록"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />

    <LinearLayout
        android:orientation="horizontal"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" >

        <TextView
            android:text="성명"
            android:layout_width="60dp"
            android:layout_height="wrap_content" />

        <EditText
            android:id="@+id/edtName"
            android:hint="이름을 입력하시오"
            android:layout_width="match_parent"
            android:layout_height="wrap_content" />
    </LinearLayout>

    <LinearLayout
        android:orientation="horizontal"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">

        <TextView
            android:text="성별"
            android:layout_width="60dp"
            android:layout_height="wrap_content" />

        <RadioGroup
            android:orientation="horizontal"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content">

            <RadioButton
                android:id="@+id/rb1"
                android:text="남"
                android:checked="true"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content" />

            <RadioButton
                android:id="@+id/rb2"
                android:text="여"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content" />


        </RadioGroup>
    </LinearLayout>

    <LinearLayout
        android:orientation="horizontal"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">

        <TextView
            android:text="휴대폰"
            android:layout_width="60dp"
            android:layout_height="wrap_content" />

        <EditText
            android:id="@+id/edPhone"
            android:hint="휴대폰 번호를 입력하세요"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"/>


    </LinearLayout>

    <LinearLayout
        android:orientation="horizontal"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">

        <TextView
            android:text="이메일"
            android:layout_width="60dp"
            android:layout_height="wrap_content" />

        <EditText
            android:id="@+id/edEmail"
            android:hint="이메일을 입력하시오"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"/>

    </LinearLayout>

    <LinearLayout
        android:orientation="horizontal"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">

        <TextView
            android:text="지역"
            android:layout_width="60dp"
            android:layout_height="wrap_content" />

        <EditText
            android:id="@+id/edCity"
            android:hint="시/도를 입력하세요"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"/>

    </LinearLayout>

    <LinearLayout
        android:orientation="horizontal"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">

        <TextView
            android:text="고객등급"
            android:layout_width="60dp"
            android:layout_height="wrap_content" />

        <Spinner
            android:id="@+id/edgrade"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"/>

    </LinearLayout>



    <Button
        android:id="@+id/rButton1"
        android:text="등록"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />



</LinearLayout>





rowitem.xml



<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="horizontal" android:layout_width="match_parent"
    android:layout_height="match_parent">

    <ImageView
        android:id="@+id/itemImage"
        android:layout_width="80dp"
        android:layout_height="80dp"
        android:src="@drawable/s1"/>

    <LinearLayout
        android:layout_weight="8"
        android:orientation="vertical"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" >

        <TextView
            android:id="@+id/itemNo"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="고객번호" />

        <TextView
            android:id="@+id/itemName"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="이름/성별"
            android:textSize="20sp"
            android:textColor="#ff0000" />

        <TextView
            android:id="@+id/itemPhone"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textSize="15sp"
            android:textColor="#007BFF"
            android:text="연락처"/>

        <TextView
            android:id="@+id/itemCity"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="지역" />





    </LinearLayout>

</LinearLayout>





CustomerC.kt



package aca.hankook.CustomerManagement

class CustomerC (var custId : Int, var name : String, var sex : String, var phone : String,
                    var city: String) {

}



CustomerlistActivity.kt



package aca.hankook.CustomerManagement

import android.content.Intent
import android.os.Bundle
import android.widget.Toast
import androidx.appcompat.app.AppCompatActivity
import kotlinx.android.synthetic.main.customerlist.*

class CustomerlistActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.customerlist)

        var custList : ArrayList<CustomerC> = arrayListOf()
        var myHelper = MyDBHelper(this)

        var sqlDB = myHelper.readableDatabase
        var cursor = sqlDB.rawQuery("select * from customerTBL", null)
        while(cursor.moveToNext()){
            custList.add(CustomerC(cursor.getInt(0), cursor.getString(1),
                cursor.getString(2), cursor.getString(3), cursor.getString(4)))
        }
        cursor.close()
        sqlDB.close()

        var adapter1 = ListViewAdapter(custList)
        listView1.adapter = adapter1
        listView1.setOnItemClickListener { adapterView, view, i, l ->
            Toast.makeText(applicationContext, "선택" + custList.get(i).name, Toast.LENGTH_LONG)
                .show()

            var intent1 = Intent(applicationContext, JasehiActivity::class.java)
            intent1.putExtra("name", custList.get(i).name)
            intent1.putExtra("id", custList.get(i).custId)
            startActivity(intent1)
        }
    }
}



JasehiActivity.kt



package aca.hankook.CustomerManagement

import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import kotlinx.android.synthetic.main.jasehi.*

class JasehiActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.jasehi)

        var intent1 = intent

        var name = intent1.getStringExtra("name")
        var id = intent1.getStringExtra("Id")

        jName.text = name
        jId.text = id
    }
}



ListViewAdapter.kt



package aca.hankook.CustomerManagement

import android.view.View
import android.view.ViewGroup
import android.widget.BaseAdapter
import kotlinx.android.synthetic.main.rowitem.view.*

class ListViewAdapter(var custList: ArrayList<CustomerC>) : BaseAdapter() {
    override fun getItem(p0: Int): Any {
        return custList[p0]
    }

    override fun getItemId(p0: Int): Long {
        return p0.toLong()
    }

    override fun getCount(): Int {
        return custList.size
    }

    override fun getView(position: Int, view: View?, parent: ViewGroup?): View {
        var rowItemView = view
        if (rowItemView == null) {
            rowItemView = View.inflate(parent?.context, R.layout.rowitem, null)
        }
        val cust1 = custList[position]
        var sajinResid = parent!!.resources.getIdentifier("aca.hankook.CustomerManagement:" + "drawable/" + "s" + cust1.custId.toString(),
            null, null)
        rowItemView!!.itemImage.setImageResource(sajinResid)
        rowItemView.itemNo.text = "고객번호 : " + cust1.custId
        rowItemView.itemName.text = "이름 : " + cust1.name + "/" + cust1.sex
        rowItemView.itemPhone.text = "연락처 : " + cust1.phone
        rowItemView.itemCity.text = "지역 : " + cust1.city

        return rowItemView
    }
}



MainActivity.kt



package aca.hankook.CustomerManagement

import android.content.Intent
import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import kotlinx.android.synthetic.main.activity_main.*

class MainActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        button1.setOnClickListener {
            var intent1 = Intent(applicationContext, RegisterActivity::class.java)
            startActivity(intent1)
        }
        button2.setOnClickListener {
            var intent1 = Intent(applicationContext, CustomerlistActivity::class.java)
            startActivity(intent1)
        }
    }
}



MyDBHelper.kt



package aca.hankook.CustomerManagement

import android.content.Context
import android.database.sqlite.SQLiteDatabase
import android.database.sqlite.SQLiteOpenHelper

class MyDBHelper(var context: Context) : SQLiteOpenHelper(context, "customerDB", null, 1) {
    override fun onCreate(p0: SQLiteDatabase?) {
        var tableCreSql = "create table customerTBL( custId integer primary key autoincrement, name varchar(20), sex varchar(2), phone varchar(20), city varchar(20) );"
        p0!!.execSQL(tableCreSql)
        p0.execSQL("insert into customerTBL(name,sex,phone,city) values('홍길동', '남', '010-1111-1111', '서울')")
        p0.execSQL("insert into customerTBL(name,sex,phone,city) values('한지민', '여', '010-2222-2222', '경기')")
        p0.execSQL("insert into customerTBL(name,sex,phone,city) values('남주혁', '남', '010-3333-3333', '인천')")
        p0.execSQL("insert into customerTBL(name,sex,phone,city) values('조정석', '남', '010-4444-4444', '부산')")
        p0.execSQL("insert into customerTBL(name,sex,phone,city) values('유연석', '남', '010-5555-5555', '대구')")
        p0.execSQL("insert into customerTBL(name,sex,phone,city) values('정경호', '남', '010-6666-6666', '대전')")
        p0.execSQL("insert into customerTBL(name,sex,phone,city) values('김대명', '남', '010-7777-7777', '용인')")
        p0.execSQL("insert into customerTBL(name,sex,phone,city) values('전미도', '여', '010-8888-8888', '강원')")

    }

    override fun onUpgrade(p0: SQLiteDatabase?, p1: Int, p2: Int) {
        p0!!.execSQL("drop table if exists customerTBL")
        onCreate(p0)
    }

}



RegisterActivity.kt



package aca.hankook.CustomerManagement

import android.os.Bundle
import android.view.View
import android.widget.AdapterView
import android.widget.ArrayAdapter
import android.widget.Toast
import androidx.appcompat.app.AppCompatActivity
import kotlinx.android.synthetic.main.register.*

class RegisterActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.register)

        rButton1.setOnClickListener {
            var name = edtName.text.toString()
            var sex = ""
            if (rb1.isChecked) {
                sex = "남"
            } else {
                sex = "여"
            }


         var grade = arrayOf("vip","gold","silver","new")
           var sAdapter1 = ArrayAdapter<String>(applicationContext, android.R.layout.simple_spinner_item, grade)
            edgrade.adapter = sAdapter1



            var phone = edPhone.text.toString()
            var city = edCity.text.toString()
            var myHelper = MyDBHelper(this)
            var sqlDB = myHelper.writableDatabase
            var insertSql =
                "insert into customerTBL(name, sex, phone, city) values ('$name', '$sex', '$phone', '$city')"
            sqlDB.execSQL(insertSql)

            Toast.makeText(applicationContext, "inser ok" + name, Toast.LENGTH_SHORT).show()
            sqlDB.close()
        }
    }
}







실행결과>>>>>





1)main 화면





2) 고객등록









3) 고객현황









5) DB추가 화면











6) jh 정보 화면 구현













이상 안드로이드 였슴다~~~~
